Steel Tile Automatic Metal Sheet Forming Machine With Hydraulic Cutting

Introduction of seamless gutter machine

Seamless gutter machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

Technical datas of seamless gutter machine

1). Main Principal Axis Diameter: ￠76mm
2). Forming Roller stand: 15 Groups
3). Main Axis material: First grade 45# steel, heated and quenched
4). Roller material: High grade 45# Steel, Quenched and heated process, surface with 0.05mm hard chrome.
5). Forming Speed: 0-15 m/min
6). Dive Type: Chain of transmission
7). Chain Material: 45# steel.
8). Machine Frame stand: Welded structural steel
9). Machine Base: 36# H shape steel
10). Thickness of Fame Steel: S18mm
11). Main Power: 5.5KW

12). Cutting type: Hydraulic cutting
13). Hydraulic power: about 4Kw
14). Hydraulic Blade and cutter material: C r12 Mov, quenching process
15). Cutting length tolerance: +/- 2mm

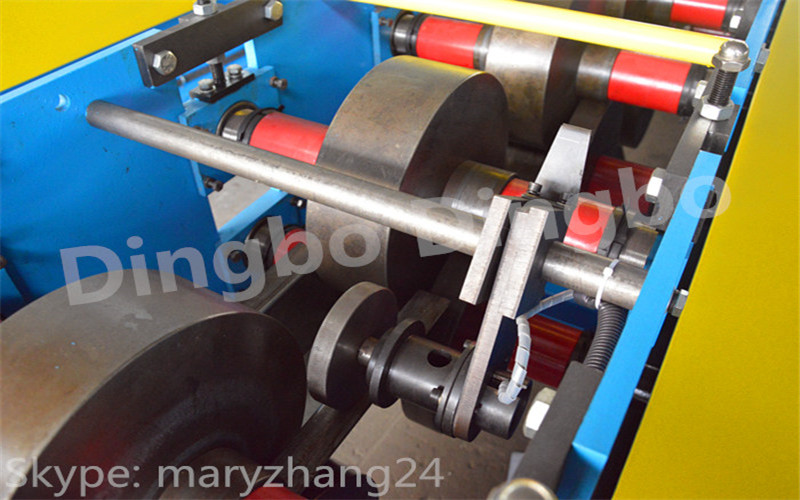

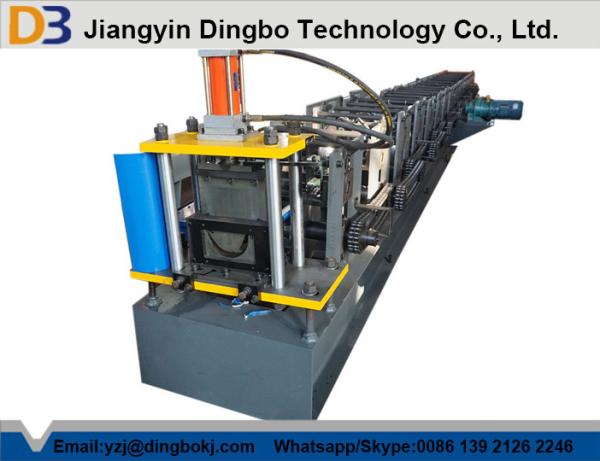

Pictures of seamless gutter machine

After sale services

• Engineer will give free training lessons to labors in buyer’s factory.
• The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer.
• During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
• We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

Company introduction

We are located in Jiangyin city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 20 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, uni channel forming machine, rack shelf roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, auto stacker, EPS/PU sandwich panel production line, slitting line, cut to length line, tube mill, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

Photo of the Factory

Our clients
