    PLC Control System Roof Sheet Making Machine Roof Iron Rolling Machine

    Ask Lasest Price
    Brand Name : DB
    Model Number : 21-35-1000
    Certification : ISO CE SGS
    Price : US $15,000 - 25,000 / Set
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 20 Sets per Month
    Delivery Time : 30 to 50 Days After Receiving the Deposit
    • Product Details
    • Company Profile

    PLC Control System Roof Sheet Making Machine Roof Iron Rolling Machine

    5.5 KW Metal Automatic Roof /Wall Tile Roll Forming Machine with PLC Control System


    Why choose this machine?

    1.Certificate: ISO 9001, CE,
    2. Lifetime services
    3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
    4. Introduced Mitsubishi PLC with touch screen to machine controll system.
    5. One worker operation (minimum)
    6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
    7. Product cut-to-length.
    8.Technician overseas installing and training available


    1. Main technical parameters

    ItemSpecification
    MaterialTypePre-painted steel coil & galvanized coils
    Thickness (mm)0.4-0.7
    Yield strength (mpa)235-345
    Roller material45#Chrome steel
    Forming speed(m/min)About 20-25
    Speed adjusting modeAC Frequency
    Cutting modeHydraulic cutting
    Cutter materialCr12 mold steel
    Length measurementEncoder
    Control modeMitsubishi PLC
    Operating modeButton + Mitsubishi Touch screen
    Main motor power (kw)7.5 kw (Depend on final design)
    Hydraulic station power2.2 kw (Depend on final design)
    Uncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)
    Machine`s sizeAbout 10*1.6*1.5m (Depend on final design)

    2. Components

    Decoiler
    (manual/ hydraulic decoiler for option)
    1set
    Feeding & guiding device1set
    Main roll forming machine1set
    Hydraulic cutting system1set
    Controlling system1set
    Run out table (auto. Stacker for option)1.5m/ pc, 2 pcs

    3. Process flow:
    Decoiler -- Feeding & Guiding -- Roll forming-- Hydraulic Cutting - Product to Run Out Table

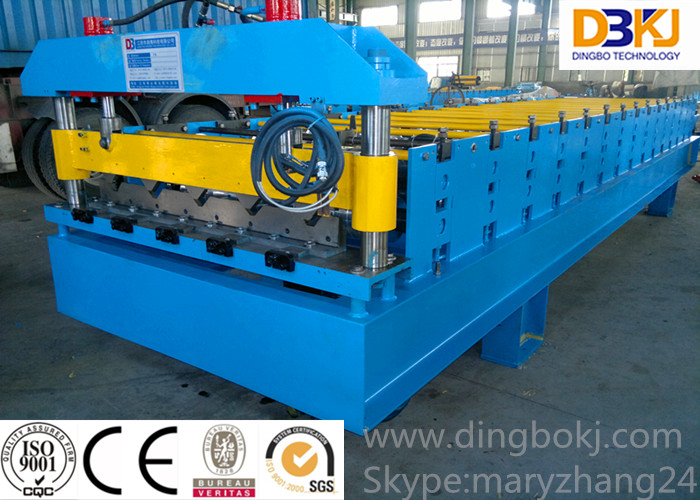

    Metal roof sheet tile roll forming machine


    Product Overviews
    Shipment
    Certificate
    Company Scene

    After Sale Service

    1.Engineer will give free training lessons to labors in buyer’s factory.
    2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer.
    3.During this guarantee period, we will provide spare parts without any charge in case of quality

    discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
    4.We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.


    HOW TO ORDER:

    Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
    2. How to visit our company
    Fly to Shanghai airport: By high speed train From Shanghai to Wuxi or Wuxi Dong (1 hour),
    then we can pick up you.
    Fly to Beijing Airport: By high speed train From Beijing Nan to Wuxi Dong(5.5 hours),then we can pick up you.
    If any questions, you can call phone at any time:0086-051086952128
    3: If you want to get more pictures or videos of the machines, I can send them to you by Email or Skype.


    FAQ:


    A:- What service can you provide before order?

    - About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.


    B:- Can you finish the machine during the delivery time?

    - We will finish the machine in time according to determined lead time.


    C:- Can you provide some spare parts?

    - Yes, of course. The quick-wear parts are sent to you together with the machine.


    D:- What is the after- sale service?

    - About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.

    The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $100 per day to maintain the machine. And the components are not free, if you need to get it from us.


    E:- Any other service?

    - We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.

    It is free to assemble machine and train your workers, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.


    F:- Can you accept OEM?

    - We can accept OEM.


    G:- Any certification:

    - Yes, we have CE SGS certification.


    H: -How does your factory do regarding quality control?

    -Quality is priority. We always attach great importance to quality controlling from the very beginning to the end. Each part of the machine components are strictly processed by advanced machine tools and experienced staffs. Every machine element is checked and inspected by our QC. Each machine before delivery shall test run and be well checked.
