Fully Automatic Change the Size CZ Steel Purlin Channel Shape Making Roll Forming Machine

Main feature

Steel CZ interchangeable purlin roll former can produce both C U and Z purlin with different specifications in one machine. The change from C and Z will be done by manually adjustment, which is can be easily done. There is also not necessary to change the rollers if producing different size of C or Z purlins. It can automatically cut to length, punch and forming, workers just need to set the length, hole distance, quantity, etc into the control system.

Working flow

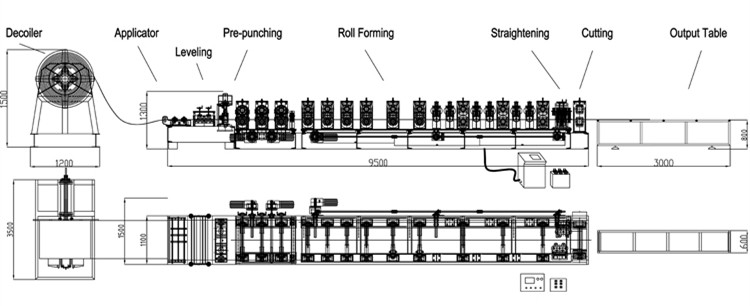

Decoiler --- Leveling --- Pre-punching --- Roll forming --- Hydraulic cutting --- Run out table


Technical parameters

Main components

• 5 Tons Manual / Hydraulic Decoiler
• Guilding Device
• 7 Rollers Leveling Device
• Hydraulic Punching Device for Holes
• Cutting Device
• Roll Forming Machine
• Mitsubishi PLC Controller
• Runout Tables
• Spare Parts and Tools Box

Machine pic

Profile drawing

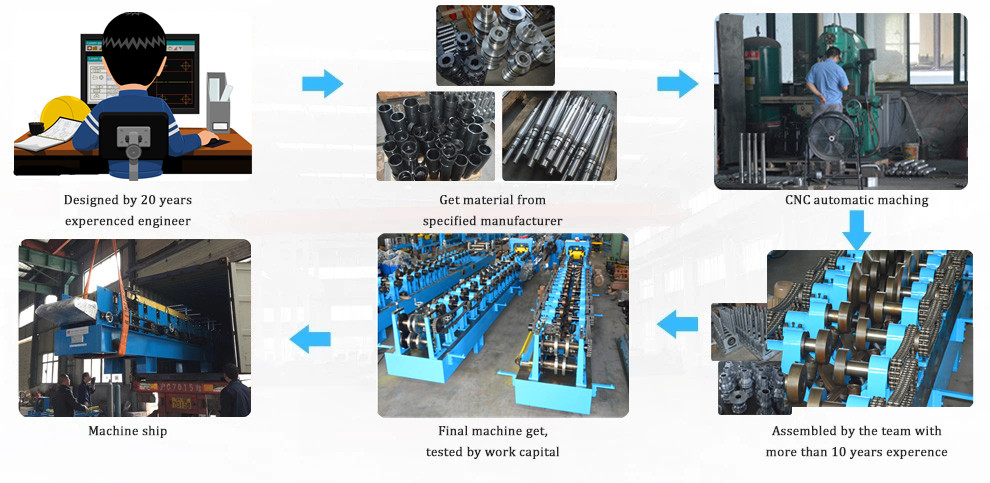

Production process

Why choose us

1. We can make and design all kinds of roll forming machine according to customer’s requests.
2. This is a very perfect and durable equipment. We have more than 20 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

FAQ

1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.

2. Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4. How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7. How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8. What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.

9. Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.

Best Regards
Andy Yang
Director
Mobile/Wechat/Skype:0086 139 2126 2246

Company introduction

We are located in Jiangyin city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 20 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, uni channel forming machine, rack shelf roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, auto stacker, EPS/PU sandwich panel production line, slitting line, cut to length line, tube mill, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
