Main Motor Power 22KW Cable Tray Punching Manufacturing Roll Forming Machine PLC System Controller

Main feature

Cable tray roll forming machine uses cantilever type at the two sides, the punch press do the round ribs in bottom or different holes’stamping and cutting. The material is guided into main roll forming machine by guider. By electrical control, automatically improve and adjust different width and height. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction.

Working flow

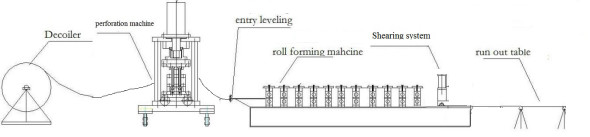

Uncoiling---Leveling---Storage---Feeding---Punching---Cutting---Roll forming---Output table

Technical parameters

1. Matching material: Galvanized steel

2. Material thickness range: 0.8-2mm

3. Forming speed: 10-15m/min(include the punching and cutting time)

5. Main power: 22KW

6. Roller station: 20stations

7. Shaft material and diameter: 76 mm, material is 40CR

8. Material of the body: 400H steel. Wall Panel; 20mm Q195 steel(all with electrostatic spraying)

9. Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃

11. Controlling system: PLC

12. Way Of drive: By chain

13. Voltage: 380V/ 3phase/ 50 Hz

14. Size of the machine: L*W*H 23m*1.5m*1.2m

15. Material of forming rollers: Gcr 15/Cr12, coated with chromed treatment (you can choose the material as your request)

16. Tolerance: +-1.5mm

Machine components

Main components

Machine pic

Packing & Shipping

The control box, hydraulic station and other spare parts are packed with plywood box.

Equipment fix with container use steel wire. Protect the machine didn't broken in the delivery.

Our service

Advanced machinery, well trained workers.

More than 20 years experience in roll forming machine industry.

Unique designed, good Germany quality, competitive China price.

Full process of roll forming machine solution.

Shipment arrangement available.

After-sales services for overseas installation and commissioning.

FAQ

1. Does one machine can only produce one size?

Not exactly, it depends on which profile the customer want to produce.

2. Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4. How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7. How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8. What's the warranty period?

12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.

9. Can we arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.

Best Regards
Andy Yang
Director
Mobile/Wechat/Skype:0086 139 2126 2246

Company introduction

We are located in Jiangyin city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 20 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, uni channel forming machine, rack shelf roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, auto stacker, EPS/PU sandwich panel production line, slitting line, cut to length line, tube mill, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
