Wall panel roll forming machine
Product Descriptions
The wall panel roll forming machine shapes and rolls the color
coated steel sheet into various wave type tiles, which are suitable
for industrial and civil buildings, warehouses, special buildings, large-span steel structure roofs, walls and exterior
decoration houses, etc., light weight, high strength, rich color,
convenient construction, earthquake, fire, waterproof, long life,
maintenance-free, etc., have been widely used.
Version to design
Product Parameters
| Suitable material | Color steel sheet |
| Material thickness | 0.3-0.8mm |
| Forming speed | 10-15m/min |
| Main motor power | 5.5 Kw(Depend on final design) |
| Hydraulic cutting power | 3 Kw(Depend on final design) |
| Roller material | 45#steel Chrome Plated |
| Cutting blade material | Cr12 Mould Steel |
| Shaft material | High quality 45# steel with heat treatment.Roller grinder milling. |
| Shaft diameter | 76mm |
| Control system | PLC with touch screen(Panasonic/Siemens) |
| Machine’s size | About 10.5m×1.8m× 1.5m (Depend on final design) |
Main Components
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Output table | set | 1 |

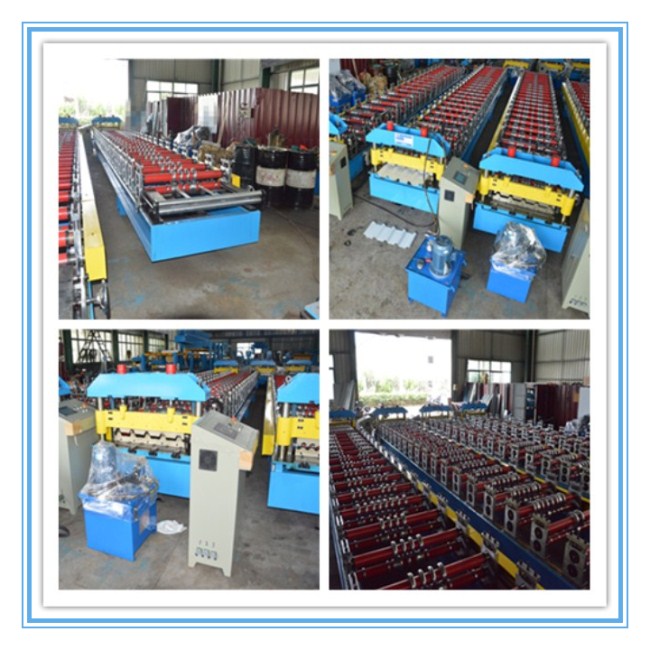

Machine pic
Application
Our service
Designing:
After order confirmation, we start to design the machine, such as
the basement, structure, rollers, shafts, power, cutting device,
programs and so on.
Making:
The main parts, like rollers and shafts are produced by ourselves.
We have several high-precision CNC lathe and other kinds of new
machine tools, so that the quality and precision can be controlled.
Assembling:
The machines are assembled by technicians with years of experience,
which can help workers improve the production efficiency and
machine’s quality.
Testing:
Raw material of different specifications are prepared for testing.
And during test, long enough material is used. Because if the
material is not long enough, some defects can not be exposed.
Delivery:
Machine will be fixed inside container by steel wire, in order to
make sure it won’t move during transportation and avoid any kinds
of damage of machine and container.
Main features
1. We can make and design all kinds of roll forming machine
according to customer's requests.
2. This is a very perfect and durable equipment. We have more than
20 years experiences.
3. This kind of machine has the best quality and the best price. It
has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according
to the customers' requirement and we could provide technical
guiding, production, installation, debugging and maintenance
service to all customers.
5. Our product has been exported to many regions and won high
reputation because of the high quality and reasonable price.
