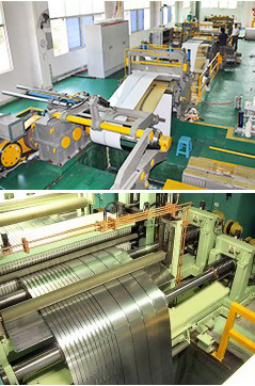

Thickness 1-6mm Automatic Metal Sheet DBSL-6x1300 Coil Metal Slitting Line

This DBSL-6x1300 Slitting Line is used to uncoiling, slitting, recoiling the steel rolls into demand width steels. It can be applied to process the cold or hot rolled steel coil, Silicon steel coils, tinplate coils, Stainless steel and color coated steels.

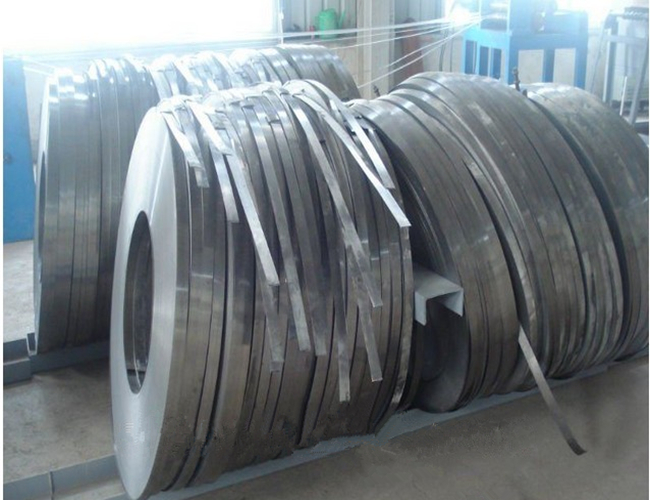

1.Function: It is used to the longitudinal cutting for the steel coils and rewinding the slit strips into coils.

2. Advantages: Convenient to operate, high cutting precision and utilization factor of the material, adopts the infinitive speed.

3.Structure: Compose of Decoiler, feeding device, slitting machine, recoiler (Rewinding) machine.

4.Material can be processed: galvanized steel, stainless steel tinplate, silicon steel ,copper and aluminum, etc.

Industries can be applied to: steel factory, transformer, electrical motor, electrical equipment, car, building materials, door, packaging industries.

Flowing chart

Material loading cart → Double loading uncoiling → Leading head, shoveling head, pitch roller feeding, end shearing machine → Deviation-correcting device → Slitting machine → Scrap institution → Loop → Pre-segregation, tension machine→ Coiler → Material unloading cart → Hydraulic control→ Electric control system

Technical parameters

Hydraulic Steel Slitting Machine/Coil Slitting Line
Material	Stainless Steel
Thinkness Range	1-6mm
Width	800-1300mm
Entry Material	460-520mm
Recoiler Material	680-810mm
Max Diameter	1500mm
Max Weight of Entry material	10-20T
Max Weight of Recoiler Material	10-20T
Cutting Speed	0~100m/min
Horizonta beat	±0.05mm
Vertical beat	±0.05mm
Voltage	380V
Container size	1×20GP

Main components

	SteelSlitting Machine Made in China include these parts:
	1. Feeding trolley	1 set
	2. Hydraulic uncoiler	1 set
	3. Side guards & Slitting Machine	1 set
	4. Loop traversing crane	1 Group
	5. Separation device and the tension generator	1 Group
	6. Separation device & hydraulic recoiling machine	1 Group
	7. Discharge port trolley	1 set
	8. Hydraulic system	1 set
	9. Power control system	1 set
	10. Other components	1 set

FAQ

1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.

Best Regards
Andy Yang
Director
Mobile/Wechat/Skype:0086 139 2126 2246

Company introduction

We are located in Jiangyin city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 20 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, uni channel forming machine, rack shelf roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, auto stacker, EPS/PU sandwich panel production line, slitting line, cut to length line, tube mill, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
