380V / 3PH Steel Slitter Line Machine with Rolling Shear Type for
Steel Coil
Brief descriptions
The DBSLsteel coil slitting line is used to roll the metal strip,
leveling, According to the required length of lateral slitting, and
neatly stacked. Unit adopts dc speed control system, pneumatic,
hydraulic control system and PLC control system. The seep of
slitting, single machine adjustment and full automatic operation
control all concentrated in the console, stable performance, safe
and convenient operation.
Working flow
From right to left are: Entry coil car→Hydraulic decoiler
→Hydraulic press and pinch device→Hydraulic cutter→Looper 1→Side
guide device→ Slitter→Scrap winder→Looper 2→Tension stand
→Recoielr→Exit coil car
Main technical parameter
| Material | Color-coated/Galvanized,/Alu-zinc steel sheet |
| Material yield stress | 235-345Mpa |
| Coil thickness | 0.40-3.00mm |
| Coil width | 400-1300mm |
| Working speed | 0-120m/min |
| Power requirement | Main motor power 7Kw |
| Decoiler | 5 tons hydraulic decoiler with coil dia. 508mm |
| Slitting blades | max.9 set blades |
| Max.slitting strips | 10 strips |
Machine components
| No | Name | Quantity |
| 1 | Entry coil car | 1 set |
| 2 | Hydraulic decoiler | 1 set |
| 3 | Hydraulic press and pinch device | 1 set |
| 4 | Hydraulic cutter | 1 set |
| 5 | Looper 1 | 1 set |
| 6 | Side guide device | 1 set |
| 7 | Slitter | 1 set |
| 8 | Scrap winder | 1 set |
| 9 | Looper 2 | 1 set |
| 10 | Tension stand | 1 set |
| 11 | Recoiler | 1 set |
| 12 | Exit coil car | 1 set |
| 13 | Hydraulic system | 1 set |
| 14 | Electrical system | 1 set |
Usually, you just provide some basic parameters, and then we can
offer a slitting line machine for you
(1) Material of the steel coil
(2) The thickness of the sheet
(3) The width the steel coil
(4) The original coil Inner diameter
(5) The original coil outer diameter
(6) The maximum weight of one original coil
(7) The maximum slitting strips quantity
(8) The output coil Inner diameter
(9) The output coil outer diameter
(10) The maximum weight of output coil
(11) Slitting machine speed requirements
(12)Production output, daily output / monthly output

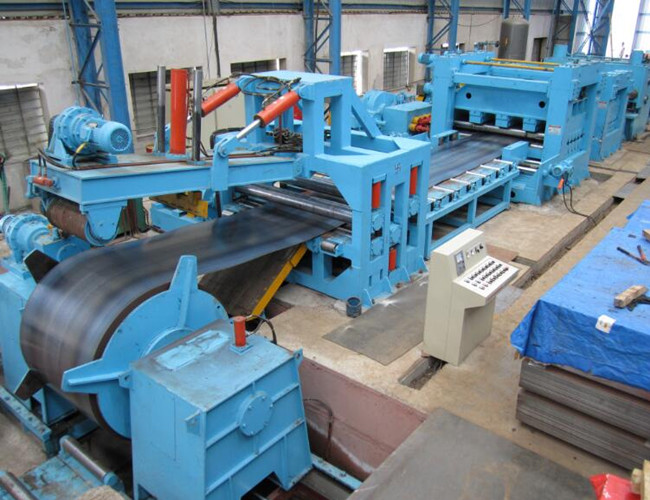

Machine picture
Our company
Jiangyin Dingbo Technology Co., Ltd. is professional manufacturer
and exporter specializing in designing, manufacturing, technology
developing, sales and services in building materials machinery
whcih mainly include all kinds of roll forming machine, tube making
machine, slitting line and cut to length line,and discontinuous PU
sandwich panel production line and embossing machine.
The main products of our factory is color steel roofing and wall
roll forming machine, pre-painted steel forming machine, floor deck
forming machine, automatical C/Z Purlin forming machine, Guardrail
forming machine, Racking roll forming machine, cable tray roll
forming machine, Glazed Tile forming machine, DownPipe forming
machine, Roller shutter door machine,tube mill, steell and aluminum
embossing machine,steel slitting and cut to length line, PU
sandwich panel line and so on.
The products are widely used in such as building structure, steel
structure warehouse, factory buildings, supermarket, Nursing homes,
villas and other construction projects, Our factory can meet the
construction enterprises, automobile industry, Iron and steel
production enterprises' growing demands.
Dingbo Technology is located in Wuxi city, Jiangsu province which
is very close to Shanghai, It's about half an hour's journey. We
enojoy the convenient transportation and advantageous location
which supply good business opportunities for the buyers home and
abroad.
FAQ
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to
produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians
available to maintain the machine overseas to customers’ workshop
if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be
made out with 40 working days.If you need machines in hurry, we can
make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and
profile drawing you provide. Our engineers can offer the best
professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station),
half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful
installation and commissioning of the equipments at the Buyer’s
Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide
door-to-door service.
