    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine

    Ask Lasest Price
    Brand Name : DB
    Model Number : according to the profile
    Certification : CE.SGS.ISO9001
    Price : US $10,000 - 15,000 / Set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 Sheet/Sheets per Month
    Delivery Time : 30 to 50 days after receiving the deposit
    • Product Details
    • Company Profile

    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    competitive price cut to length machine with PLC control system


    Working flow:


    Decoiler--guiding- leveling--transmission—hydraulic cutting


    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    Specific parameters


    5 tons Manual decoiler

    Expanding Range480~520mm
    Capacity5 Ton
    Max width for coil1250mm
    Material of shaftGcr45 steel
    Size of winderAbout (H*L*W)1 M*1.9M*0.5M
    Weight of equipmentAbout 200kgs

    Smooth Plate Cutting Machine
    Raw material width1250mm
    Thickness of raw material0.2-1.5mm
    Working speed10-12m/min
    TransmissionThree group rubber rollers
    Diameter of rubber roller110mm
    Leveling system7 groups rollers(3 group in upper,4 group in below)
    Material of leveling rollersGcr15 bearing steel, quenched 55-58
    Main power3kw
    Hydraulic cutting3kw
    Electrical control systemPLC Panasonic Japan. 380V, 50HZ,3 phases

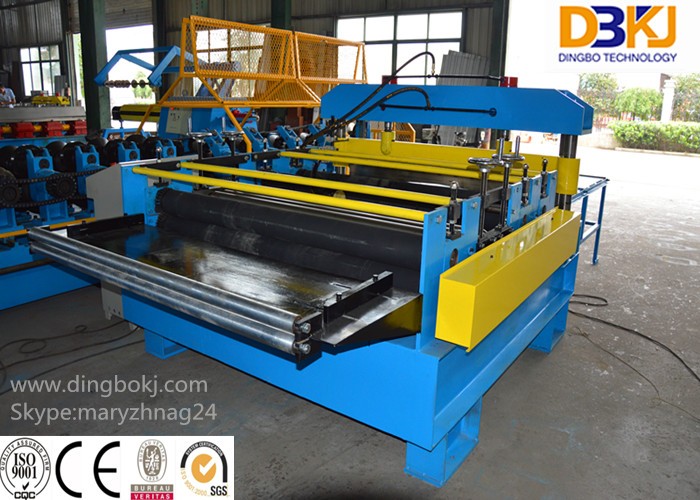

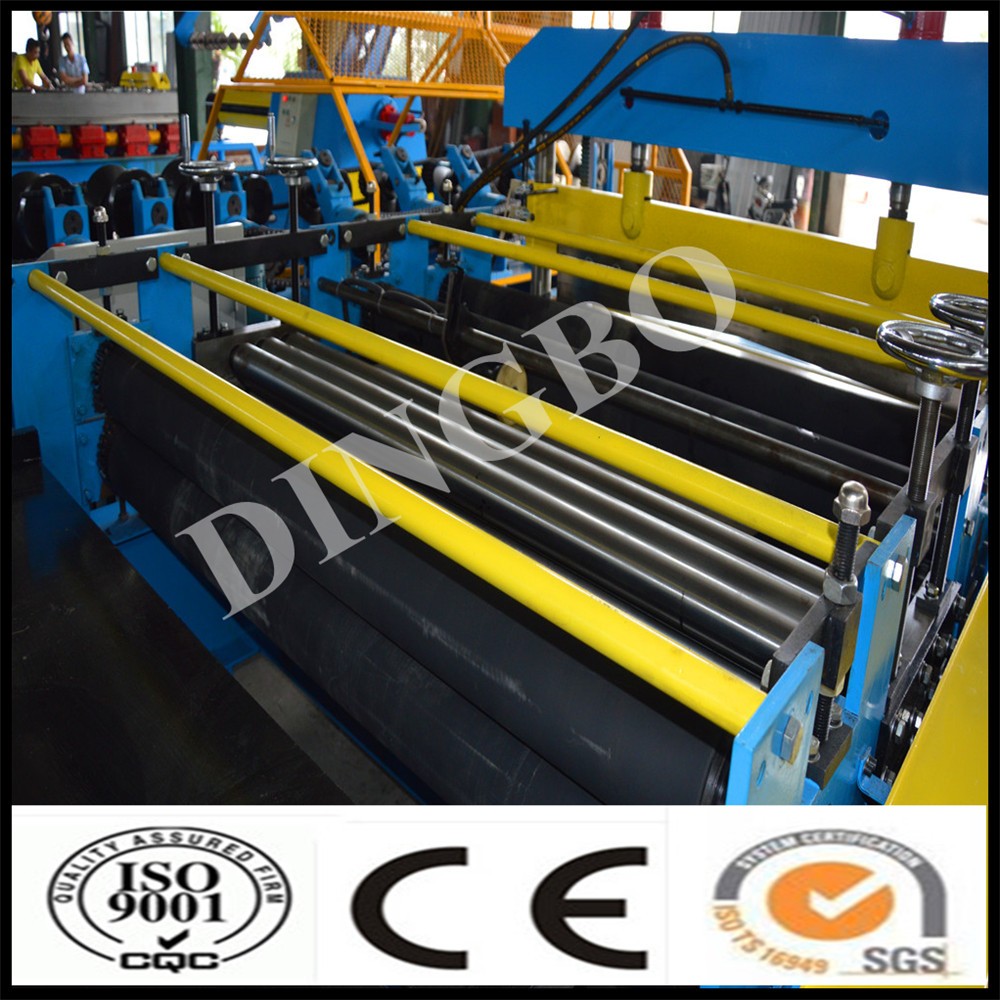

    Photos for reference


    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    The Production Steps

    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    Certificates

    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine

    Company Scene
    PLC Control System Steel Slitting Line , 5 Ton Slitter Rewinder Machine


    FAQ

    Q: Do you have after sales support?

    A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

    Q: Once we've bought a machine from you, are you able to supply us with material?

    A: We can assist you in finding the appropriate materials to suit your machine

    Q: Do you sell only standard machines?

    A: No, most of our machines are built according to customers specifications, using top brand name components

    Q: What size decoiler can you supply us with?

    A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler

    Q: Do you have a warranty on your machines?

    A: One year warranty excluding electrical components.

    Q: What sales terms do you have?

    A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.

    Q: Do you have instruction manuals?

    A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings

    Q: Once a machine arrives at our factory what happens then?

    A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

    Q: What do I need to offload my machine from the container?

    A: You are responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

    Q: My current machine rollers need to be replaced. Would you be able to assist me?

    A: Yes. Send us your profile and specifications then we will manufacture the rollers for you

    Q: What kind of controls do you use on your machines?

    A: AMS, Delta, Schneider, Siemens, and Mitsubishi

    Q: What is your delivery time?

    A: Depending on the type of machine, duration of 25 days to 185 days from date of order.

    Q: Do we receive any updates while machine is in the manufacturing process?

    A: Yes.Regular updates on progress will be sent to you.
