Low Noise 5.5kw Standard Gutter Roll Forming Machine 15 Groups Roller

Brief introduction of gutter roll forming machine

The rain gutter roll forming machine can be designed according to the drawings and requirements provided by our client. It is used to fabricate rain gutters that could work together with down pipes to form the drainage system for the building.

Technical data of gutter roll forming machine

1). Main Principal Axis Diameter: ￠76mm

2). Forming Roller stand: 15 Groups
3). Main Axis material: First grade 45# steel, heated and quenched
4). Roller material: High grade 45# Steel, Quenched and heated process, surface with 0.05mm hard chrome.
5). Forming Speed: 0-15 m/min
6). Dive Type: Chain of transmission
7). Chain Material: 45# steel.
8). Machine Frame stand: Welded structural steel
9). Machine Base: 36# H shape steel
10). Thickness of Fame Steel: S18mm
11). Main Power: 5.5KW Cutting Device & Hydraulic Station
12). Cutting type: Hydraulic cutting
13). Hydraulic power: about 4Kw
14). Hydraulic Blade and cutter material: C r12 Mov, quenching process
15). Cutting length tolerance: +/- 2mm

Quality and Service Assurance gutter roll forming machine
1.we have Q & C department in our factory and our engineer have much experience and can design the suitable machine for our clients.
2.our machine can produce the nice production, can guarantee good quality.the production is confirm to the national standard even the international standard
3.the products should not have scratch and the flatness
Technical R & D Department: design teams for different kind of production line.

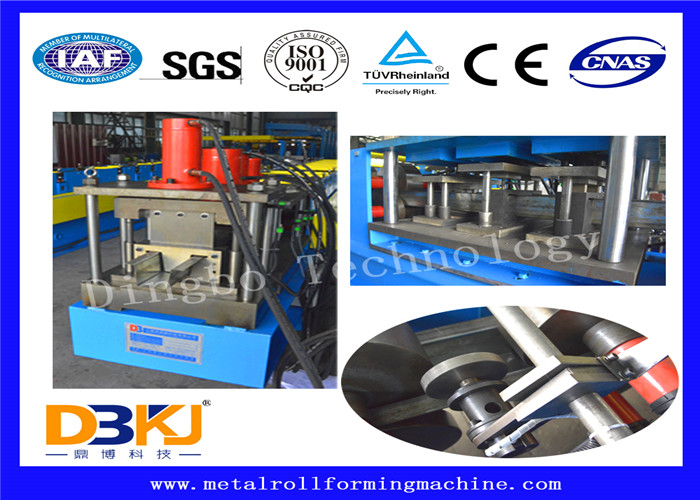

Photos gutter roll forming machine

Company introduction

We are located in Jiangyin city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 20 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, uni channel forming machine, rack shelf roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, auto stacker, EPS/PU sandwich panel production line, slitting line, cut to length line, tube mill, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

Photo of the Factory

Our clients
