0.8~1.5mm Thickness Automatic Metal Fire Damper Roll Forming Machine

Main features

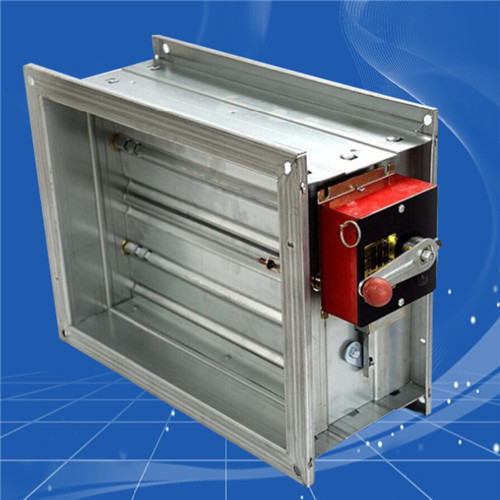

Fire damper forming machine  produced fire damper frame , installed in the ventilation or air-conditioning systems, usually it is open, once fire occurs, the gas temperature of duct arrives at 70 degrees, and then the fuse protector will be fused and the damper will close under the pull of spring. It can meet the requirement of stability and completeness in a certain time. It can insolate smog and fire outside.

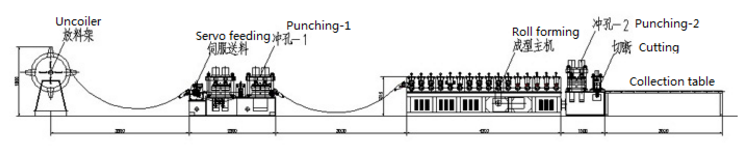

Working flow

Uncoiler--Feeding--Leveling--Punching--Roll forming--Hydraulic cut to length--Output table

Technical parameters

Place of Origin: Jiangsu ,China (Mainland)

Product Name: Fire Resisting Damper Equipment

Certification: ISO CE SGS

After-sales Service Provided: Engineers available to service machinery overseas

Control System: PLC with touch screen

Way of Drive: Gear box or chain

Roll material: GCr15 with quenched treatment 58-62°C

Shaft material: 45# high grade steel

Frame material: 350 H-high grade steel

Cutting blade material: Cr12Mov, quenching process 58-62°C

Cutting type: Hydraulic cutting

Machine components

FAQ

1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.

2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.

9.Can we arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.

Best Regards
Andy Yang

Director
Mobile/Wechat/Skype:0086 139 2126 2246

Company introduction

We are located in Jiangyin city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 20 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, uni channel forming machine, rack shelf roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, auto stacker, EPS/PU sandwich panel production line, slitting line, cut to length line, tube mill, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
