    Roof use tile roll forming machine , roofing sheet double layer roll forming machine

    Ask Lasest Price
    Brand Name : Dingbo
    Model Number : MZ2016091001
    Certification : ISO SGS CE BV
    Price : USD 25000/ SET
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets /month
    Delivery Time : 35 working days after receiving the deposit
    • Product Details
    • Company Profile

    Roof use tile roll forming machine , roofing sheet double layer roll forming machine

    Product Description

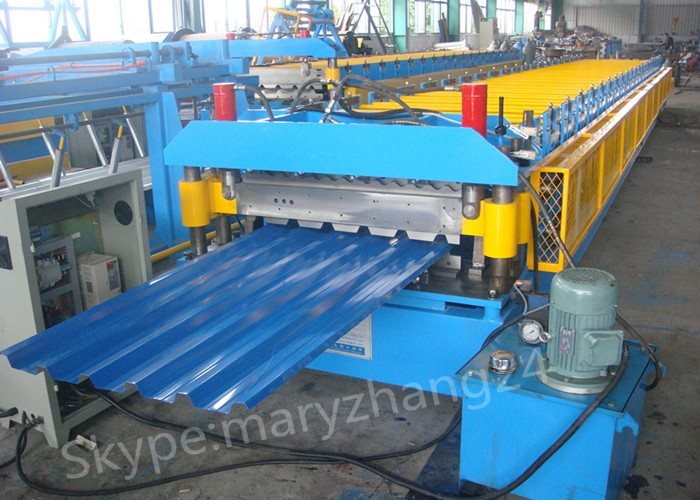

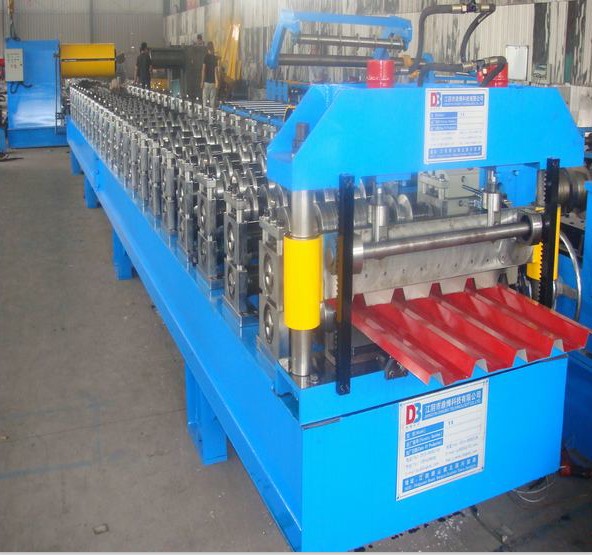

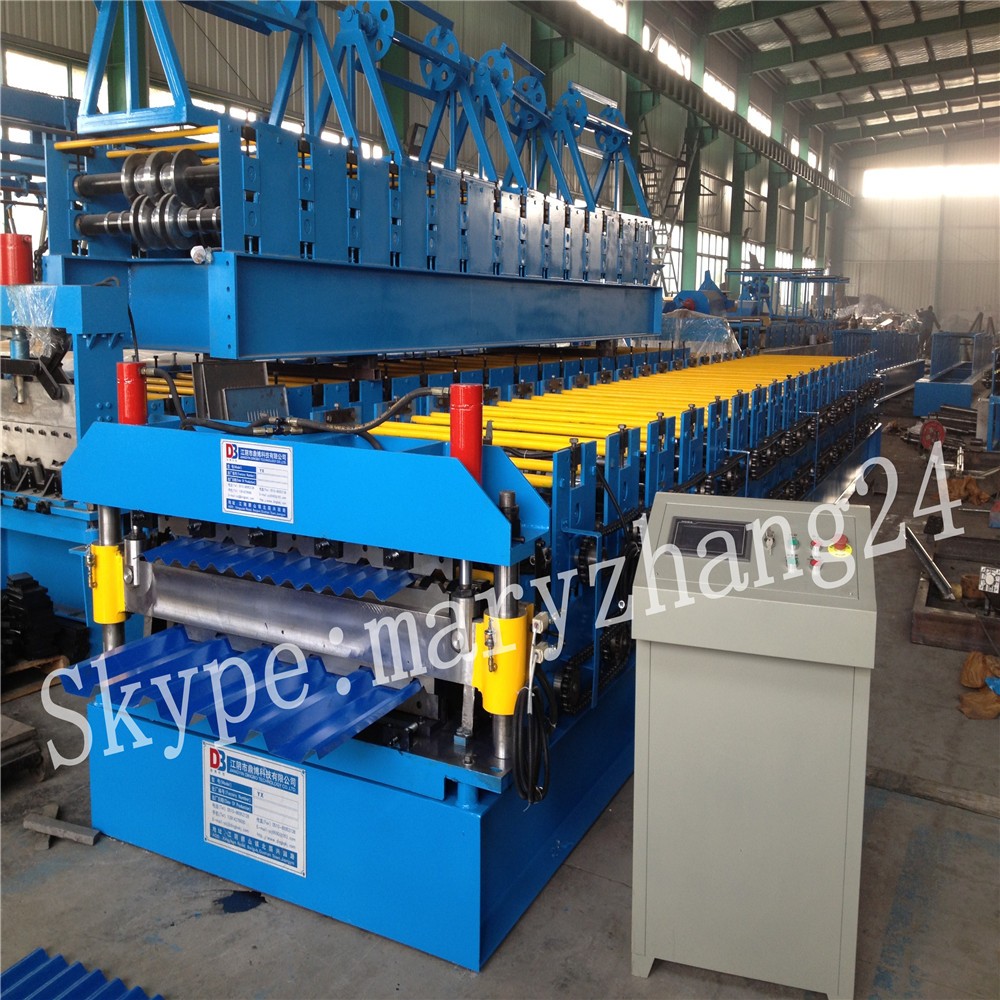

    Roof use and tile forming machine type double layer roofing sheet roll forming machine

    Double Layer Metal Deck Roofing Sheet Roof Tile Roll forming Machine by bello lin Applicable to commercial facade, garage, shopping malls, hospitals, factories and mines enterprises and so on public place or residence. Especially it was large and inconvenient installation ground body place convenient and quick open.
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine

    Main Technical Parameters of double layer roofing sheet roll forming machine

    1.Suitable to process: Color steel plate
    2.Width of the plate: 1000mm
    3.Rollers: 9/11 rows
    4.Dimensions: 7*1.5*1.5m
    5.Power: 4+4kw
    6.Rolling material: high grade 45# steel(plated chrome on surface)
    7.Thickness of the plate:0.3-0.6mm
    8.Voltage: 380V 50Hz 3phases
    9.Material of the cutting plate: Cr12
    10.Hydraulic: 40#
    11.Processing precision: Within 1.00mm
    12.Control system: PLC control
    Certifications
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Detailed Images
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine

    Machine Parts

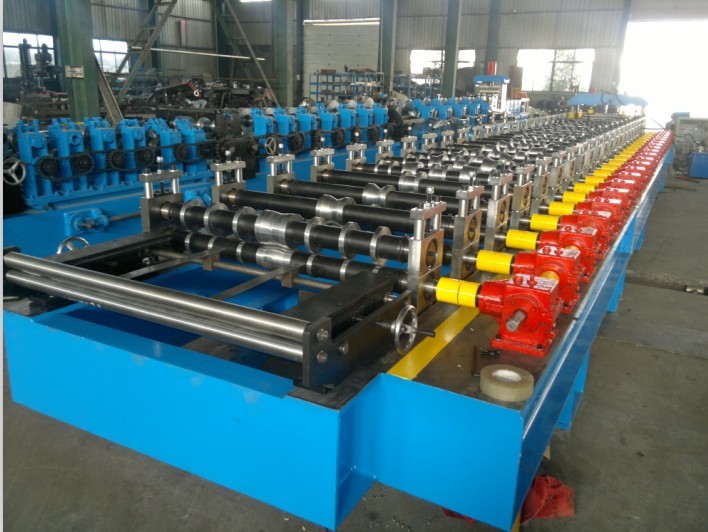

    Name: roller station

    Brand: Dingbo

    Original: China

    AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
    Roller chrome coated thickness: 0.05 mm
    Roller material: Forging Steel 45# heat treatment, coated

    Main Features

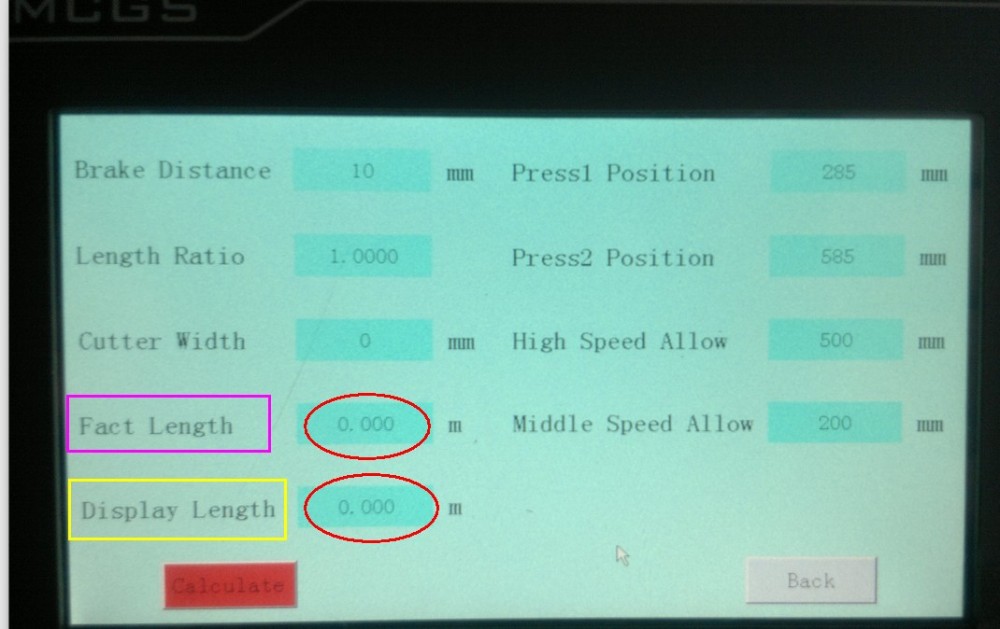

    Name: PLC touching screen
    Brand: Panasonic
    Original: Japan
    Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working.

    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine

    Machine Parts

    Name: PLC
    Brand: Panasonic
    Original: Japan
    Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working.

    Main Features

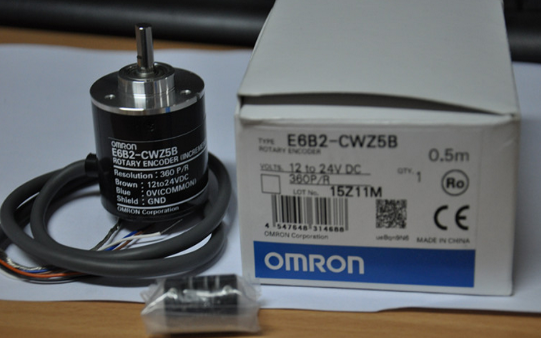

    Name: Coder
    Brand: Omron
    Original: Germany

    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Our Service
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine

    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.

    Packing & Delivery
    Roof use tile roll forming machine , roofing sheet double layer roll forming machine
    Packaging
    Size
    150 (L) * 140 (W) * 1180 (D)
    Weight
    8 T
    Packaging Details
    1. We have professional technicians for loading.Guaranteed the goods load into container without any damage.

    2. Transportation : Machines need one 40 feet container to hold
