Full Automatic 2 Years Warranty Corrugated Metal Roof Sheet Rolling Forming Machine

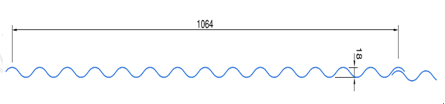

Profile drawing

Working flow

Main data

1)Main motor power: 5.5kw
2)Drive: Chain
3)Main shaft dia: 76mm material: 45 forge steel and quenched
4)Roller material: 45# forge steel ,chrome coated 0.05mm
5)Roll station: 20 steps
6)Type of forming machine: wall panel
7)Raw material: GI steel 0.3-0.8mm
8)Width of feeding material: 1250mm
9)Working speed: 10-15m/min(Exclude cutting time)
10)Length Tolerance: ±1.5mm
11)Weight of machine: about 5ton
12)Size of machine: About 7500×1800×1500mm L x W x H
13)cof machine: yellow and blue
14)Coder: Omron, made in Japan
15)Control: PLC Panasonic, made in Japan. 380V 50HZ(Also depend on customer requirement)
16)Computer operating panel: touching screen
17)Cutting: Hydraulic cutting
18)Auto cutting when reach the set length. Hydraulic power: 3KW
19)Blade material: Cr12,quenched 55°-58°
20)Working pressure:16mpa

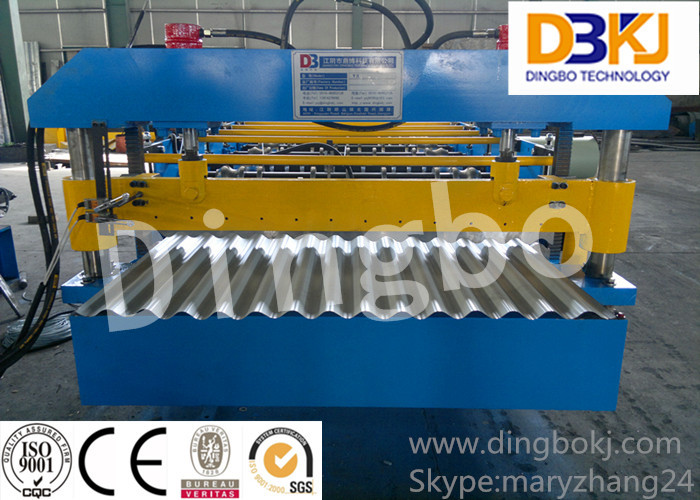

Photos for Reference

Company introduction

We are located in Jiangyin city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 20 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, uni channel forming machine, rack shelf roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, auto stacker, EPS/PU sandwich panel production line, slitting line, cut to length line, tube mill, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
