10-15M / Min Forming Speed Corrugated Roofing Sheet Roll Forming Machine

Main features

The corrugated tile produced by this corrugated roll forming machine Line is one of market hot sale products. Its feature is low cost, convenient for mounting, therefore extensively applied in light steel frame factory buildings ,warehouses, public buildings, etc. The metal roof panels have become the popular roofing panels.

Working flow

Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack

Technical parameters

(1) Suitable material: color steel
(2) Thickness of the plate: 0.3-0.8mm
(3) Input width of the plate: 1250/1000mm
(4) Width of the plate after forming: 1000/800mm
(5) Productivity: 10-15m/min
(6) Roller steps: 18rows
(7) Roller material: 45# steel Rolling chromium thickness:0.05 mm
(8) Diameter of active shaft: 80mm
(9) Wall thickness of the main forming machine:16mm steel plate
(10) Main forming machine body: 300mmH steel
(11) Transmission chain is1"
Reducer is 5.5kw which works stably and no noise
(12) Cutting hydraulic system adopts CDF-10 gear pump,the motor power is 4kw, no noise, work stably.
(13) PLC control system, easy to operate, high precision and work stably.
(14) Dimensions of major structure: 8500mm*1600mm*1200mm

Machine components

Product pics

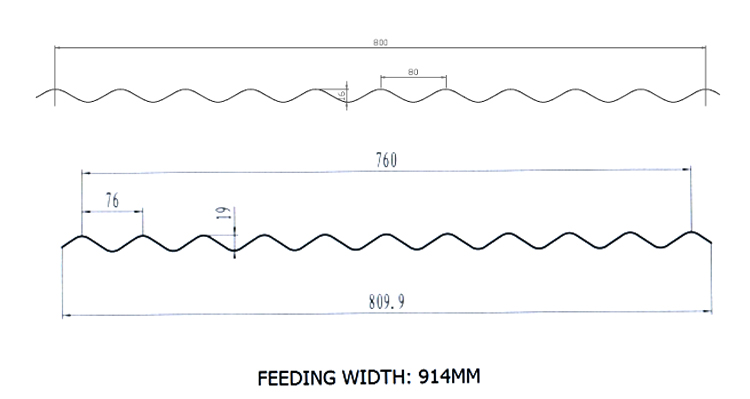

Profile dwrawing

Packaging

The control box, hydraulic station and other spare parts are packed with plywood box.

Equipment fix with container use steel wire. Protect the machine didn't broken in the delivery.
