    High Precision Metal Roof Ridge Cap Roll Forming Machine With 5 Ton Decoiler

    Ask Lasest Price
    Brand Name : DingBo
    Model Number : DBCT
    Certification : CE.SGS.ISO9001
    Price : US $1,000 - 20,000 / Set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10 Set/Sets per Month
    Delivery Time : Shipped in 30-70 days after payment
    • Product Details
    • Company Profile

    High Precision Metal Roof Ridge Cap Roll Forming Machine With 5 Ton Decoiler


    High Precision Metal Roof Ridge Cap Roll Forming Machine With 5 Ton Decoiler


    Main features

    Ridge cap roll forming machine is used to produce ridge caps for roof. This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on. It is produced continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.


    Working flow

    Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables


    Technical parameters


    No.main parameter roof ridge cap cold roll forming machine
    1Suitable to processColor steel plate
    2Width of the plate1250mm
    3Rollers16-23 rows
    4Dimensions8.0*1.65*1.5m
    5Power5.5kw
    6Thickness of the plate0.3-0.8mm
    7Productivity10-15m/min
    8Diameter of the rollerΦ80mm
    9WeightAbout 4.5 T
    10Voltage380V 50Hz 3phases
    11Rolling materialCarbon Steel 45#
    12Material of the cutting plateCr12
    13Processing precisionWithin 1.00mm
    14Control systemPLC control

    Machine components

    No.NameUnitQty
    1Manual decoilerset1
    2Main forming machineset1
    3PLC control systemSet1
    4Hydraulic pump stationset1
    5Post cutset1
    6Electric motorset1
    7Output tableset1

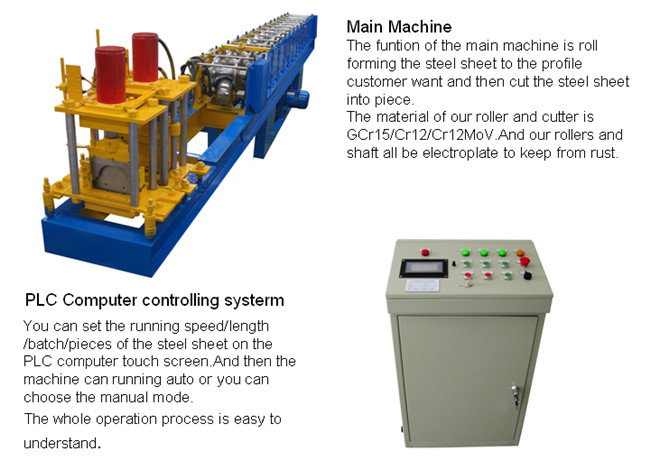

    Machine pics


    High Precision Metal Roof Ridge Cap Roll Forming Machine With 5 Ton Decoiler

    High Precision Metal Roof Ridge Cap Roll Forming Machine With 5 Ton Decoiler


    Company information

    Jiangyin Dingbo Technology Co., Ltd. is professional manufacturer and exporter specializing in designing, manufacturing, technology developing, sales and services in building materials machinery whcih mainly include all kinds of roll forming machine, tube making machine, slitting line and cut to length line,and discontinuous PU sandwich panel production line and embossing machine.


    The main products of our factory is color steel roofing and wall roll forming machine, pre-painted steel forming machine, floor deck forming machine, automatical C/Z Purlin forming machine, Guardrail forming machine, Racking roll forming machine, cable tray roll forming machine, Glazed Tile forming machine, DownPipe forming machine, Roller shutter door machine,tube mill, steell and aluminum embossing machine,steel slitting and cut to length line, PU sandwich panel line and so on.


    The products are widely used in such as building structure, steel structure warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and steel production enterprises' growing demands.


    Dingbo Technology is located in Wuxi city, Jiangsu province which is very close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.

    FAQ

    1. Does one machine can only produce one size?
    Not exactly, it depends on which profile the customer want to produce.

    2.Do you have after-sales technical support?
    Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers workshop if needed.

    3. You are trading company or factory?
    We are Manufacturer, and we export our machine by ourselves.

    4.How long the machine could be made?
    Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

    5. Do you provide customized?
    Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.


    6. May we visit your factory?
    Sure,Warmly welcome to our factory at any time.

    7.How to visit your factory?
    By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

    8.What's the warranty period?
    12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.


    9.Can we arrange shipment?

    Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
