Material thickness 1.0 to 2.5mm cable tray roll forming machine
drive way 1.5 inch Chain fast
Main features
In the electrical wiring of buildings, cable tray roll forming
machine produced a cable tray system is used to support insulated
electric cables used for power distribution and communication.
Cable trays are used as an alternative to open wiring or electrical
conduit systems, and are commonly used for cable management in
commercial and industrial construction.
Working flow
Auto-de-coiler-----leveling----servo feeding----hole
punching----cutting-----conveying----roll forming----running out of
product
Technical parameters
| Line structure | Portal-type frame style, A3 steel |
| Forming Roller Stations: | 16 Stations |
| Forming Roller shaft: | 80mm |
| Forming rollers | Cr12Mov, Quenching, hardness HRC58-60o |
| Forming Speed: | 10 -15 meters / min |
| Main motor: | 11kw, |
| Material of Sheet: | Soft Quality (Annealed) Galvanized Sheet |
| Sheet Thickness: | 1.0mm-2.5mm |
| Steel plate width | 200-600mm |
| Cutter Device | Hydraulic press or saw style is optional |
| Main machine dimension | 13000*1500*1200m |
| Control mode | PLC Control |
Machine components
| Hydraulic de-coiler | 1 set |
| Levelling device | 1 set |
| Servo feeding device | 1 set |
| Press machine JH-200 | 1 set |
| Main roll forming machine | 1 set |
| PLC control box | 1 unit |
| Hydraulic station | 1 unit |
| Cutting device | 1 unit |
| Punching mould | 1 unit |
| Out table | 2 units
|

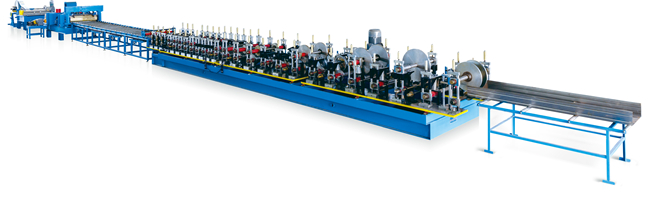

Machine pics
Our services
Advanced machinery, well trained workers.
More than 20 years experience in roll forming machine industry.
Unique designed, good Germany quality, competitive China price.
Full process of roll forming machine solution.
Shipment arrangement available.
After-sales services for overseas installation and commissioning

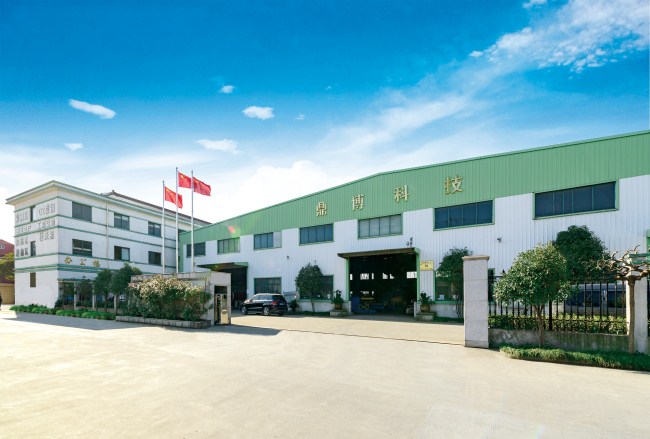

Company information
Jiangyin Dingbo Technology Co., Ltd. is professional manufacturer
and exporter specializing in designing, manufacturing, technology
developing, sales and services in building materials machinery
whcih mainly include all kinds of roll forming machine, tube making
machine, slitting line and cut to length line,and discontinuous PU
sandwich panel production line and embossing machine.
The main products of our factory is color steel roofing and wall
roll forming machine, pre-painted steel forming machine, floor deck
forming machine, automatical C/Z Purlin forming machine, Guardrail
forming machine, Racking roll forming machine, cable tray roll
forming machine, Glazed Tile forming machine, DownPipe forming
machine, Roller shutter door machine,tube mill, steell and aluminum
embossing machine,steel slitting and cut to length line, PU
sandwich panel line and so on.
The products are widely used in such as building structure, steel
structure warehouse, factory buildings, supermarket, Nursing homes,
villas and other construction projects, Our factory can meet the
construction enterprises, automobile industry, Iron and steel
production enterprises' growing demands.
Dingbo Technology is located in Wuxi city, Jiangsu province which
is very close to Shanghai, It's about half an hour's journey. We
enojoy the convenient transportation and advantageous location
which supply good business opportunities for the buyers home and
abroad.
FAQ
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to
produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians
available to maintain the machine overseas to customers’ workshop
if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be
made out with 40 working days.If you need machines in hurry, we can
make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and
profile drawing you provide. Our engineers can offer the best
professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station),
half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful
installation and commissioning of the equipments at the Buyer’s
Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide
door-to-door service.
