    Simple Cut To Length Line Steel Slitting Line For Galvanized Aluminum Sheet Stain

    Ask Lasest Price
    Brand Name : DINGBO
    Model Number : DBCL
    Certification : CE SGS ISO
    Price : 100000~150000 USD/set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets /month
    Delivery Time : Shipped in 30-70 days after payment
    • Product Details
    • Company Profile

    Simple Cut To Length Line Steel Slitting Line For Galvanized Aluminum Sheet Stain

    Cut to length production line

    Products Description

    This simple cut to length line is mainly used for terminal customers convenient processing production Simple operation, convenient maintenance

    1. The design of the whole machine is reasonable, compact, high precision, high efficiency, flexible and convenient to adjust.

    2. Function: Automatically detect steel coil parameters, one-button scrolling, one-button reclaiming, and automatic adjustment.

    3. The manufacturing process of the whole machine is strictly in accordance with the mechanical standard specifications, and the production and manufacture of each component is tracked and controlled.

    4. Cooperation with well-known domestic and foreign manufacturers, the introduction of first-class leveling technology, and on this basis by professional technical team to develop and extend.

    5. The bearings and slide rails of the main engine are imported brands, with advanced lubrication system and long service life.

    6. Electrical components are selected from imported high-end brands, and mechanical parts are well-known brands at home and abroad.

    technological process

    Uncoiler -- Feeding -- Leveling -- Straightener -- Measuring shears -- Output table

    Product Paramenters

    1MaterialsPPGI, GI, Aluminum, Carbon steel, Hot Rolled, Cold Rolled, Stainless steel
    2Thickness0.3-1.5mm
    3Width1250mm
    4Coil I.D.508mm
    5Coil weight5-10Tons
    6Max speed0-15m/min
    7Cutting precision1.0 mm/two meters 0.5mm/one meter
    8Length tolerance≤±1mm/2000mm
    9Power380V/50HZ/3PH(Customized)

    Main Items

    NameQuantity
    Coiler car1 set
    Decoiler1 set
    Side guide1 set
    Straightener1 set
    Measuring Hydraulic cutting1 set
    Unloading table1 set
    Motor1 set
    Hydraulic unit1 set

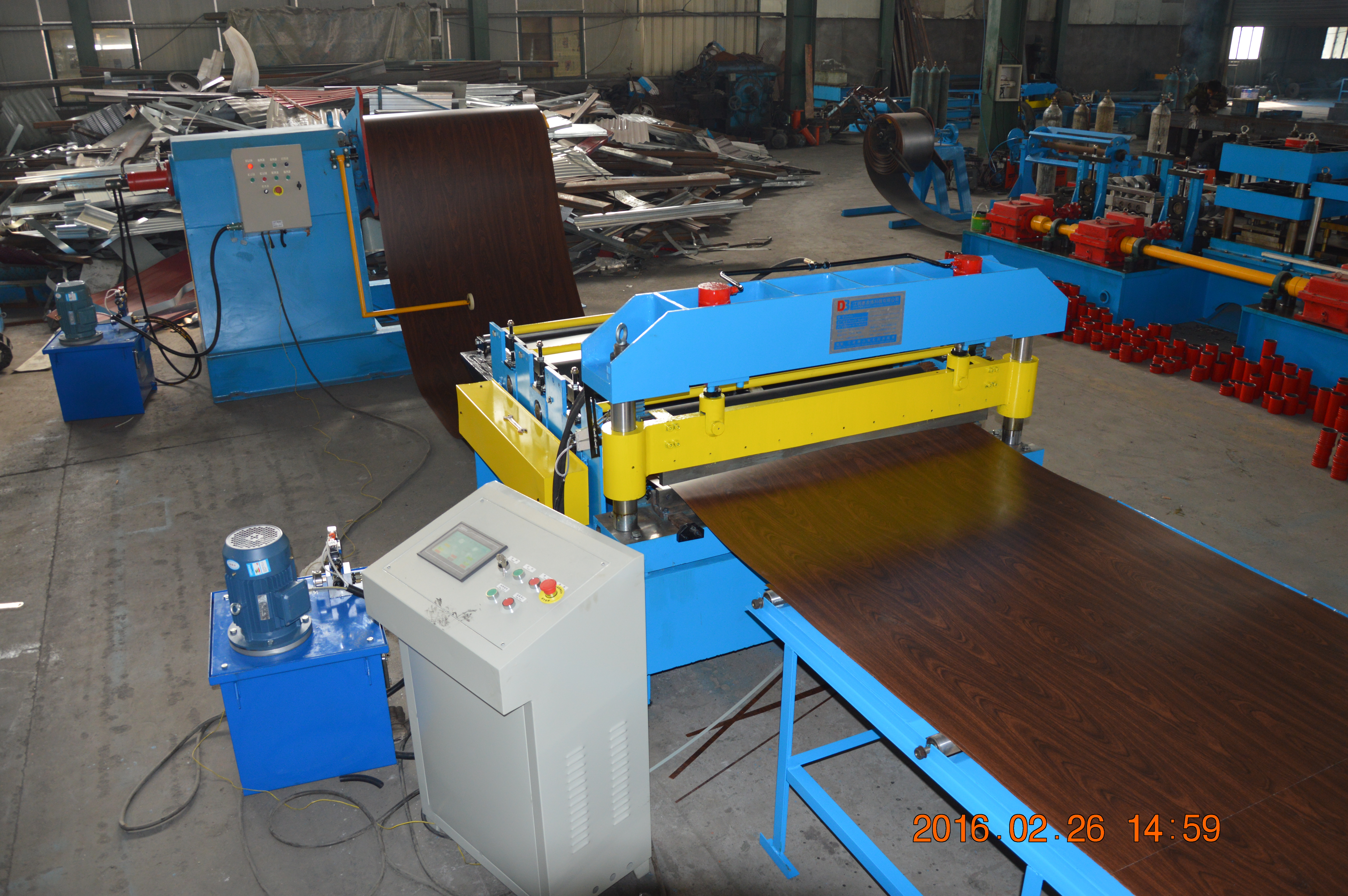

    Machine pic


    Our service

    Designing:
    After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.
    Making:
    The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.
    Assembling:
    The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.
    Testing:
    Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.
    Delivery:
    Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.


    Main features


    1. We can make and design all kinds of roll forming machine according to customer's requests.
    2. This is a very perfect and durable equipment. We have more than 20 years experiences.
    3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
    4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
    5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
